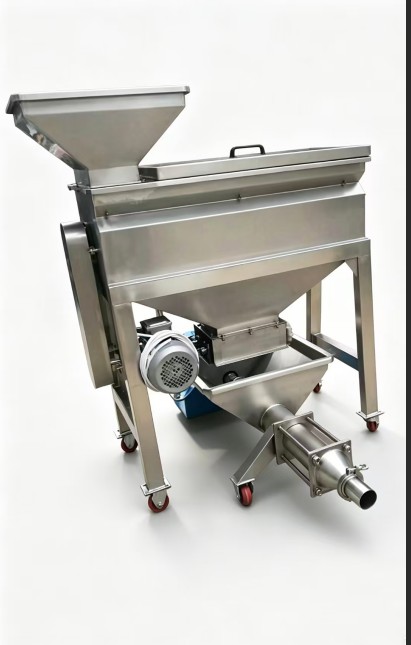

Grape Destemmer Crusher | Stainless Steel Winery Stem Removing Machine

Product Overview

This grape destemmer crusher is core pre-processing equipment for wineries and fruit juice factories. It automatically separates grape stems from berries first, then gently crushes grape pulp for fermentation or juice extraction. Compared to manual processing, it drastically cuts labor cost, avoids bitter stem impurities mixed into grape must, and improves final wine taste stability. All contact parts adopt food-safe stainless steel to meet international food hygiene standards.

Product model: ZSHPS-1

Production capacity: 0.5-1t/h

Mesh aperture: φ 28mm

Gap between crushing rollers: 3-5mm

Motor power: 1.1kw Voltage: 380V

Dimensions: 1250 × 500 × 1250mm

Main Features

1. Dual-function Integrated Design

Combines destalking and crushing in one unit; users can turn off crushing function for whole grape fermentation as needed.

2. 304 Food Grade Stainless Steel Structure

Corrosion-resistant against fruit acid, easy to fully disassemble & clean, long service life for humid workshop environments.

3. Adjustable Rotation Speed & Crushing Gap

Adapt to different grape varieties, ripeness levels, to prevent over-crushing grape seeds which cause bitter taste.

4. High Efficient Continuous Feeding

Stable feeding hopper design avoids material blockage, supports non-stop batch production.

5. Low Damage Gentle Crushing

Protects grape skin pigment and aromatic substances, ideal for high-quality red wine brewing.

Wide Application Scenarios

• Commercial winery grape wine production

• Grape juice, grape concentrate beverage processing lines

• Small family craft winery equipment

• Berry fruit pre-processing (cherry, blueberry stem removal optional)

Technical Advantage & Quality Assurance

Strict production inspection before shipment; voltage customization (220V/380V/415V 50/60Hz for EU, South America, Africa markets). The transmission system uses durable chains and motors, reducing failure rate during harvest peak season.

After-sales Service

1. 1-year full machine warranty, free replacement of damaged core wearing parts within warranty period

2. Lifetime online video technical guidance for installation, operation and troubleshooting

3. Customized capacity, structure layout according to customer production line layout

4. Professional packing with fumigated wooden case for ocean freight transportation safety
