Food Grade Stainless Steel Syrup Mixing Tank

Name: Food Grade Stainless Steel Syrup Mixing Tank
SKU: 0

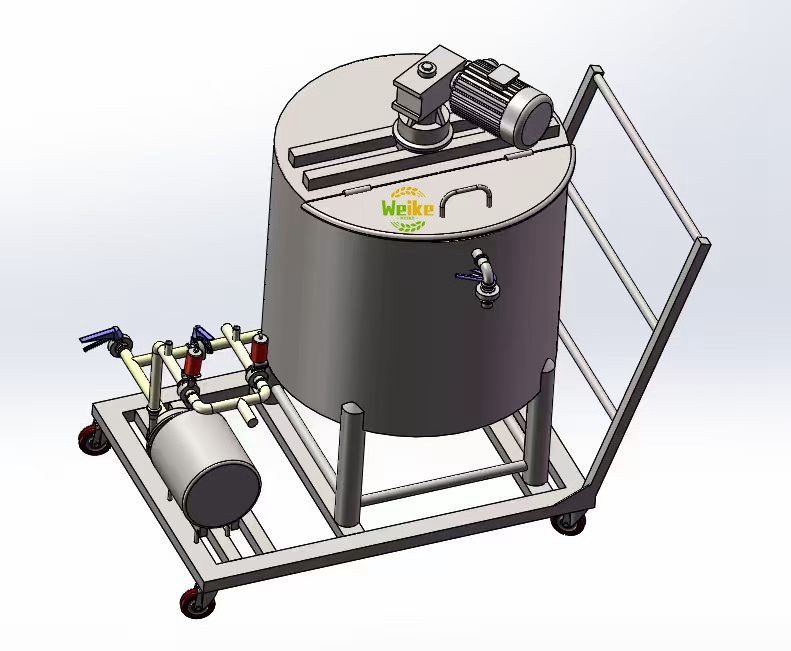

This sanitary syrup mixing tank, also named sugar melting tank or syrup preparation tank, is custom-built for food & beverage factories to dissolve granulated sugar, mix fruit concentrates, flavor bases and sweetener liquid. Made of food-grade stainless steel with seamless mirror inner surface, it eliminates residue dead corners and meets 3A food hygiene standards. Equipped with jacket heating/cooling system and variable-frequency agitator, it realizes full-automatic sugar dissolving, uniform blending and precise temperature control for stable syrup quality. Capacities from small lab 50L to large industrial 30000L are available.

Get a Quote

PRODUCT DESCRIPTION

Main Material

• Standard: SUS304 stainless steel for neutral sugar syrup

• Upgrade: SUS316L stainless steel for acidic fruit syrup, high-salt formula

• Inner finish: Mirror polishing Ra ≤0.8μm, full seamless welding, easy CIP cleaning

Tank Structure Options

1. Single-layer tank: Normal temperature blending for ready-mixed syrup storage

2. Double jacket tank (Hot sell): Support electric/steam heating + cold water cooling, fast sugar melting & rapid cooling

3. Three-layer tank: Jacket + thermal insulation layer, energy-saving constant temperature

Agitator Configurations (Customizable)

• Propeller mixer: Low-medium viscosity clear syrup

• Anchor mixer with PTFE scraper: High-viscosity thick fruit syrup, anti-wall sticking

• High shear homogenizer: Emulsified flavored syrup, no lumps

• VFD speed regulation: 0–960 RPM adjustable, match different batch viscosity

Core Functional Advantages

1. Precise PID temperature control (0–120°C), stable sugar dissolution without scorching

2. Fully hygienic design: Manhole, sight glass, sanitary discharge valve, no blind spots

3. Complete automatic control cabinet: Temperature display, timing stirring, overload protection

4. Full customization: Mobile caster, operation platform, ladder, explosion-proof motor, CIP cleaning port

5. Certification: CE, ISO9001, GMP, meet global food production requirements

Application Range

Sugar syrup, fructose/glucose base, fruit concentrate syrup, bubble tea syrup, soda beverage base, candy syrup, pharmaceutical oral syrup, jam & sweet sauce pre-blending

Standard Technical Range

Capacity: 50L ~ 30000L

Heating mode: Electric heating / Steam heating

Voltage: 220V/380V/415V customized

Warranty: 1-year whole machine warranty, lifelong technical support
